配置窗口属性

（一）窗口概述

PyGUIAdapter中主要有两种类型的窗口：函数选择窗口（FnSelectWindow）和函数执行窗口（FnExecuteWindow），它们都继承自窗口父类BaseWindow。BaseWindow定义了子类窗口的共同行为，比如：

• 开发者可以使用窗口配置类配置窗口的某些属性
• 开发者可以向窗口中添加工具栏和菜单栏
• 开发者可以监听窗口的某些事件
• 开发者可以在窗口事件回调中获取/改变添加到工具栏（菜单栏）中的动作（Action）的状态
• ......

1、窗口的基本接口

同时， BaseWindow中定义并实现了一组基本接口，这些接口可以对窗口进行操作或者是实现了其他有用的功能，开发者可以在动作（Action）或窗口事件的回调函数中调用这些接口。可以参考这个文档pyguiadapter.window.BaseWindow以获取这些接口的详细信息。

2、窗口的共同属性

窗口的属性，如标题、图标、大小、位置、字体、样式等，均由窗口的配置类定义，BaseWindowConfig是所有窗口配置类的父类，定义了一组所有窗口均适用的共同属性，可以参考这个文档pyguiadapter.window.BaseWindowConfig以获取这些属性的详细信息。

BaseWindow的子类窗口通常继承BaseWindowConfig实现专用的窗口配置类，并覆盖BaseWindowConfig中某些属性的默认值或添加专门适用于子类窗口的新属性。

3、窗口事件监听

窗口的创建、显示、关闭、销毁、隐藏均被视为一种事件，开发者可以监听这些事件，并在这些事件发生时执行特定的代码。对窗口事件的监听，需要通过BaseWindowEventListener对象来完成，开发者可以子类化该类，或者使用一个它的一个现成子类SimpleWindowEventListener。

可以参考以下文档获取窗口事件监听器的详细信息：

• pyguiadapter.window.BaseWindowEventListener
• pyguiadapter.window.SimpleWindowEventListener

（二）函数选择窗口（FnSelectWindow）

1、概述

在向GUIAdapter实例中添加了多个函数后，PyGUIAdapter将创建一个函数选择窗口，该窗口会显示所有已添加的函数。在仅添加了一个函数时，函数选择窗口将不会显示，而是直接显示该函数的执行窗口，当然，开发者也可以通过如下方式，强制显示函数选择窗口：

adapter.run(show_select_window=True)

函数选择窗口主要分成三个区域：

• ①函数列表区域
• ②函数文档区域
• ③函数选择按钮

2、配置窗口属性

函数选择窗口（FnSelectWindow）的可配置属性由FnSelectWindowConfig类定义，开发者可以通过以下方法配置窗口属性：

完整代码如下：

from pyguiadapter.adapter import GUIAdapter
from pyguiadapter.windows import DocumentBrowserConfig
from pyguiadapter.windows.fnselect import FnSelectWindowConfig


def fn1():
    """
    This example shows how config the **function select window**
    """
    pass


def fn2():
    """
    This example shows how config the **function select window**
    """
    pass


def fn3():
    """
    This example shows how config the **function select window**
    """
    pass


def fn4():
    """
    This example shows how config the **function select window**
    """
    pass


if __name__ == "__main__":

    select_window_config = FnSelectWindowConfig(
        title="My Tool Kit",
        icon="fa5s.tools",
        default_fn_group_name="Group 1",
        default_fn_group_icon="fa.desktop",
        fn_group_icons={
            "Group 2": "fa.mobile",
            "Group 3": "fa.cloud",
        },
        size=(600, 400),
        icon_size=32,
        icon_mode=True,
        select_button_text="Go!",
        document_browser_width=400,
        document_browser_config=DocumentBrowserConfig(),
        always_on_top=True,
    )

    adapter = GUIAdapter()
    adapter.add(fn1)
    adapter.add(fn2)
    adapter.add(fn3, group="Group 2")
    adapter.add(fn4, group="Group 3")
    adapter.run(select_window_config=select_window_config)

关于函数选择窗口（FnSelectWindow）的可配置属性，可参考以下文档：

• pyguiadapter.windows.fnselect.FnSelectWindowConfig

3、监听窗口事件

开发者可以对函数选择窗口（FnSelectWindow）的事件进行监听。方法如下：

完整代码如下：

from pyguiadapter.adapter import GUIAdapter
from pyguiadapter.utils import messagebox
from pyguiadapter.window import SimpleWindowEventListener
from pyguiadapter.windows.fnselect import FnSelectWindow


def on_window_create(window: FnSelectWindow):
    print("on_create")


def on_window_show(window: FnSelectWindow):
    print("on_show")


def on_window_hide(window: FnSelectWindow):
    print("on_hide")


def on_window_close(window: FnSelectWindow) -> bool:
    print("on_close")
    ret = messagebox.show_question_message(
        window,
        title="Confirm Quit",
        message="Are you sure to quit?",
        buttons=messagebox.Yes | messagebox.No,
    )
    if ret == messagebox.Yes:
        return True
    return False


def on_window_destroy(window: FnSelectWindow):
    print("on_destroy")


def event_example_3():
    pass


if __name__ == "__main__":
    event_listener = SimpleWindowEventListener(
        on_create=on_window_create,
        on_show=on_window_show,
        on_hide=on_window_hide,
        on_close=on_window_close,
        on_destroy=on_window_destroy,
    )
    adapter = GUIAdapter()
    adapter.add(event_example_3)
    adapter.run(show_select_window=True, select_window_listener=event_listener)

代码运行效果如下：

控制台输出如下：

4、添加工具栏

开发者可以向函数选择窗口（FnSelectWindow）中添加工具栏，方法如下：

完整代码如下：

from pyguiadapter.action import Action
from pyguiadapter.adapter import GUIAdapter
from pyguiadapter.toolbar import ToolBar, ToolButtonTextUnderIcon
from pyguiadapter.utils import messagebox
from pyguiadapter.windows.fnselect import FnSelectWindow


def on_action_test(window: FnSelectWindow, action: Action):
    messagebox.show_info_message(
        window, message=f"Action Triggered!(Action: {action.text})"
    )


def on_action_close(window: FnSelectWindow, _: Action):
    ret = messagebox.show_question_message(
        window,
        message="Are you sure to close the application?",
        buttons=messagebox.Yes | messagebox.No,
    )
    if ret == messagebox.Yes:
        window.close()


action_test = Action(
    text="Test", icon="fa.folder-open", on_triggered=on_action_test, shortcut="Ctrl+O"
)
action_close = Action(
    text="Close", icon="fa.close", on_triggered=on_action_close, shortcut="Ctrl+Q"
)

toolbar = ToolBar(
    actions=[action_test, action_close],
    floatable=True,
    button_style=ToolButtonTextUnderIcon,
)


def foo():
    pass


if __name__ == "__main__":
    adapter = GUIAdapter()
    adapter.add(foo)
    adapter.run(show_select_window=True, select_window_toolbar=toolbar)

效果如下：

5、添加窗口菜单

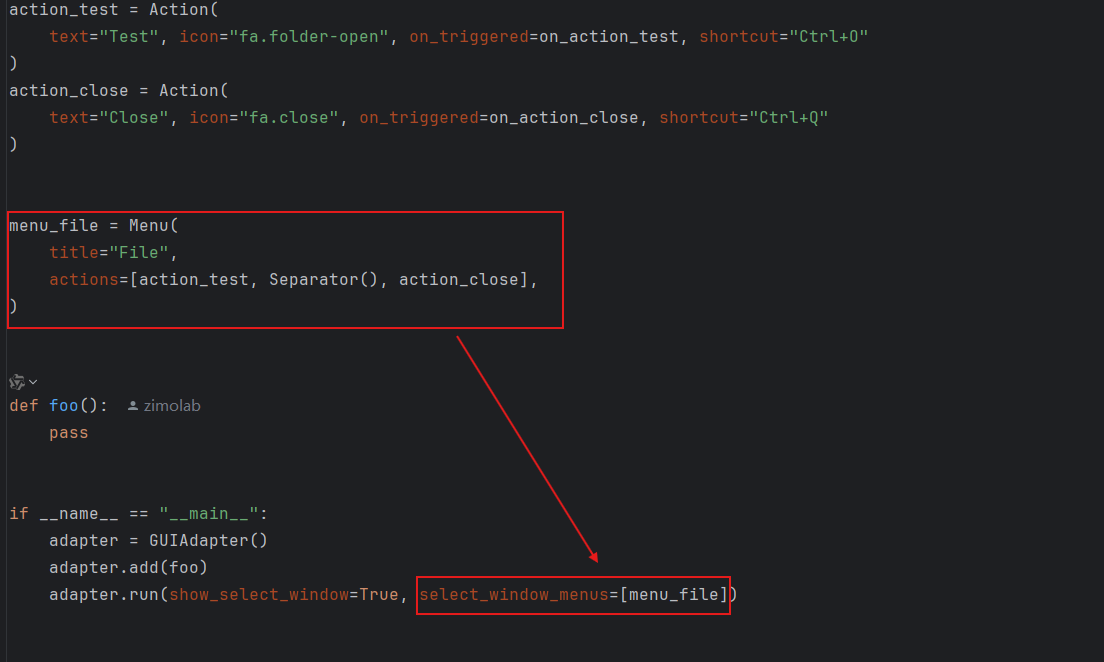

开发者可以向函数选择窗口（FnSelectWindow）中添加菜单栏，方法如下：

完整示例代码如下：

from pyguiadapter.action import Action, Separator
from pyguiadapter.adapter import GUIAdapter
from pyguiadapter.menu import Menu
from pyguiadapter.utils import messagebox
from pyguiadapter.windows.fnselect import FnSelectWindow


def on_action_test(window: FnSelectWindow, action: Action):
    messagebox.show_info_message(
        window, message=f"Action Triggered!(Action: {action.text})"
    )


def on_action_close(window: FnSelectWindow, _: Action):
    ret = messagebox.show_question_message(
        window,
        message="Are you sure to close the application?",
        buttons=messagebox.Yes | messagebox.No,
    )
    if ret == messagebox.Yes:
        window.close()


action_test = Action(
    text="Test", icon="fa.folder-open", on_triggered=on_action_test, shortcut="Ctrl+O"
)
action_close = Action(
    text="Close", icon="fa.close", on_triggered=on_action_close, shortcut="Ctrl+Q"
)


menu_file = Menu(
    title="File",
    actions=[action_test, Separator(), action_close],
)


def foo():
    pass


if __name__ == "__main__":
    adapter = GUIAdapter()
    adapter.add(foo)
    adapter.run(show_select_window=True, select_window_menus=[menu_file])

效果如下：

6、主要接口

参考：pyguiadapter.windows.fnselect.FnSelectWindow。

（三）函数执行窗口（FnExecuteWindow）

1、概述

函数执行窗口（FnExecuteWindow）是用户与程序进行交互的主要界面。一个典型的函数执行窗口（FnExecuteWindow）由以下几个部分组成：

其中：

• 文档浏览器用于显示函数说明文档。
• 输出浏览器用于显示函数运行过程中使用输出的消息。默认情况下，函数的返回值、函数的异常信息均会显示在此区域。

2、配置窗口属性

函数执行窗口（FnExecuteWindow）的窗口属性由配置类FnExecuteWindowConfig定义，开发者可以通过GUIAdapter.add()方法的window_config配置窗口的属性，每个函数都可以根据需要配置自己的窗口属性，例如，在下面的例子中，function_1和function_2分别配置了不同的窗口属性：

from pyguiadapter.adapter import GUIAdapter
from pyguiadapter.windows.fnexec import FnExecuteWindowConfig


def function_1(arg1: int, arg2: str, arg3: bool) -> None:
    pass


def function_2(arg1: int, arg2: str, arg3: bool) -> None:
    pass


if __name__ == "__main__":
    adapter = GUIAdapter()
    adapter.add(
        function_1,
        # set window config for function_1
        window_config=FnExecuteWindowConfig(
            title="Function 1", clear_checkbox_visible=True
        ),
    )
    adapter.add(
        function_2,
        # set window config for function_2
        window_config=FnExecuteWindowConfig(
            title="Function 2",
            size=(400, 600),
            clear_checkbox_visible=False,
            clear_checkbox_checked=False,
            document_dock_visible=False,
        ),
    )
    adapter.run()

下面是一个更加复杂一些的例子，演示了更多可配置属性的效果：

from typing import Optional

from pyguiadapter.adapter import GUIAdapter
from pyguiadapter.exceptions import ParameterError
from pyguiadapter.windows.fnexec import FnExecuteWindowConfig


def equation_solver(a: float, b: float, c: float) -> Optional[tuple]:
    """
    Solving Equations: ax^2 + bx + c = 0 (a,b,c ∈ R, a ≠ 0)
    @param a: a ∈ R, a ≠ 0
    @param b: b ∈ R
    @param c: c ∈ R
    @return:
    """
    if a == 0:
        raise ParameterError(parameter_name="a", message="a cannot be zero!")

    delta = b**2 - 4 * a * c
    if delta < 0:
        return None
    x1 = (-b + delta**0.5) / (2 * a)
    if delta == 0:
        return x1, x1
    x2 = (-b - delta**0.5) / (2 * a)
    return x1, x2


if __name__ == "__main__":
    window_config = FnExecuteWindowConfig(
        title="Equation Solver",
        icon="mdi6.function-variant",
        execute_button_text="Solve",
        size=(350, 450),
        document_dock_visible=False,
        output_dock_visible=False,
        clear_button_visible=False,
        clear_checkbox_visible=False,
        show_function_result=True,
        function_result_message="real roots: {}",
        default_parameter_group_name="Equation Parameters",
        print_function_error=False,
        print_function_result=False,
    )
    adapter = GUIAdapter()
    adapter.add(equation_solver, window_config=window_config)
    adapter.run()

函数执行窗口（FnExecuteWindow）拥有丰富的可配置选项，可以参考以下文档获得这些选项的详细信息：

• pyguiadapter.windows.fnexec.FnExecuteWindowConfig。

关于文档浏览器的配置，可以参考以下文档：

• pyguiadapter.windows.DocumentBrowserConfig。

关于输出浏览器的配置，可以参考以下文档：

• pyguiadapter.windows.fnexec.OutputBrowserConfig。

Q&A： 为什么设置了DocumentBrowserConfig和OutputBrowserConfig，但有时不生效？

这种情况常见于开发者为窗口设置了样式表（QSS）或使用了第三方美化库时。由于样式表的优先级要高于DocumentBrowserConfig和OutputBrowserConfig，因此可能会发生DocumentBrowserConfig或OutputBrowserConfig中设置的样式（如文字颜色、背景色等）被样式表覆盖掉的情况。这种设计的目的是为了让界面的整体风格保持一致。

比如下面这个例子，通过第三方库设置了窗口主题后，文档浏览器和输出浏览器的文字颜色、背景颜色也会被调整到合适的状态。

"""
This example requires PyQtDarkTheme. Please install it before you run this example.
"""

from datetime import datetime

from pyguiadapter.adapter import GUIAdapter
from pyguiadapter.extend_types import text_t


def app_style_example(
    arg1: str, arg2: int, arg3: float, arg4: bool, arg5: text_t, arg6: datetime
):
    """
    This example requires [PyQtDarkTheme](https://github.com/5yutan5/PyQtDarkTheme).
    Please install it before you run the example.

    <br />

    e.g. using `pip`:

    > `pip install pyqtdarktheme`

    @param arg1: arg1 description
    @param arg2: arg2 description
    @param arg3: arg3 description
    @param arg4: arg4 description
    @param arg5: arg5 description
    @param arg6: arg6 description
    @return:
    """
    pass


if __name__ == "__main__":
    import qdarktheme

    def on_app_start(app):
        # this will be called after the instantiation of QApplication.
        print("app started")
        qdarktheme.setup_theme("dark")

    adapter = GUIAdapter(on_app_start=on_app_start)
    adapter.add(app_style_example)
    adapter.run()
```

如果开发者确实需要设置文档浏览器或输出浏览器的样式，而不希望它被第三方库覆盖，可以通过DocumentBrowserConfig或OutputBrowserConfig的stylesheet属性指定其样式表内容，通过stylesheet设置的样式一般不会被第三方库覆盖。比如下面的示例：

"""
This example requires PyQtDarkTheme. Please install it before you run this example.
"""

from datetime import datetime

from pyguiadapter.adapter import GUIAdapter
from pyguiadapter.extend_types import text_t
from pyguiadapter.windows.fnexec import FnExecuteWindowConfig, OutputBrowserConfig


def app_style_example(
    arg1: str, arg2: int, arg3: float, arg4: bool, arg5: text_t, arg6: datetime
):
    """
    This example requires [PyQtDarkTheme](https://github.com/5yutan5/PyQtDarkTheme).
    Please install it before you run the example.
    <br />

    e.g. using `pip`:

    > `pip install pyqtdarktheme`

    <br />

    The style of output browser will be overridden with **OutputBrowserConfig.stylesheet**

    @param arg1: arg1 description
    @param arg2: arg2 description
    @param arg3: arg3 description
    @param arg4: arg4 description
    @param arg5: arg5 description
    @param arg6: arg6 description
    @return:
    """
    pass


if __name__ == "__main__":
    import qdarktheme

    def on_app_start(app):
        # this will be called after the instantiation of QApplication.
        print("app started")
        qdarktheme.setup_theme("dark")

    adapter = GUIAdapter(on_app_start=on_app_start)
    adapter.add(
        app_style_example,
        window_config=FnExecuteWindowConfig(
            output_browser_config=OutputBrowserConfig(
                stylesheet="""
                background-color: "#380C2A";
                color: "#FFFFFF";
                font-family: "Consolas";
                font-size: 12pt;
                """
            )
        ),
    )
    adapter.run()

3、监听窗口事件

开发者可以对（函数执行窗口）FnExecuteWindow的事件进行监听并做出响应，一个比较常见的场景是，在用户关闭窗口时再次向用户进行确认。监听窗口事件的方法如下：

from pyguiadapter.adapter import GUIAdapter
from pyguiadapter.window import SimpleWindowEventListener
from pyguiadapter.windows.fnexec import FnExecuteWindow
from pyguiadapter.utils import messagebox


def on_window_create(window: FnExecuteWindow):
    print("on_create")


def on_window_show(window: FnExecuteWindow):
    print("on_show")


def on_window_hide(window: FnExecuteWindow):
    print("on_hide")


def on_window_close(window: FnExecuteWindow) -> bool:
    print("on_close")
    ret = messagebox.show_question_message(
        window,
        title="Confirm Quit",
        message="Are you sure to quit?",
        buttons=messagebox.Yes | messagebox.No,
    )
    if ret == messagebox.Yes:
        return True
    return False


def on_window_destroy(window: FnExecuteWindow):
    print("on_destroy")


def event_example_2():
    pass


if __name__ == "__main__":
    event_listener = SimpleWindowEventListener(
        on_create=on_window_create,
        on_show=on_window_show,
        on_hide=on_window_hide,
        on_close=on_window_close,
        on_destroy=on_window_destroy,
    )
    adapter = GUIAdapter()
    adapter.add(event_example_2, window_listener=event_listener)
    adapter.run()

上述示例效果如下：

控制台输出如下：

除了可以使用BaseWindowEventListener或SimpleWindowEventListener对函数执行窗口的事件进行监听，还可以使用函数执行窗口专用的事件监听器类：FnExecuteWindowEventListener或SimpleFnExecuteWindowEventListener。除了可以监听一般的窗口事件，它们还能对函数执行状态进行监听，包括：

• 函数开始执行，此时将会回调on_execute_start()
• 函数正常返回，此时将会回调on_execute_result()
• 函数执行过程中发生异常，函数未正常返回，此时将回调on_execute_error()
• 函数执行完毕，此时将会回调on_execute_finish()，由于不管函数是否正常返回，其最终都会回到该状态， 因此，可以保证在on_execute_result()或on_execute_error()回调之后on_execute_finish()一定会被回调

在上述事件回调函数中，比较特殊的是on_execute_result()和on_execute_error()。这两个回调函数返回一个bool值，其作用是告诉PyGUIAdapter是否要对函数的返回值或异常执行默认的处理逻辑。若返回True，则PyGUIAdapter将在函数返回或发生异常后执行默认的操作，比如打印或弹窗显示返回值或异常信息。若返回False，则表示开发者已经在回调函数中完成了对函数返回值/异常处理，无需PyGUIAdapter再次进行处理。

开发者可以查看以下文档，获取FnExecuteWindowEventListener或SimpleFnExecuteWindowEventListener的详细信息：

• FnExecuteWindowEventListener
• SimpleFnExecuteWindowEventListener

下面是一个简单的示例：

from pyguiadapter.adapter import GUIAdapter
from pyguiadapter.utils import messagebox
from pyguiadapter.windows.fnexec import (
    FnExecuteWindow,
    SimpleFnExecuteWindowEventListener,
)


def on_execute_start(window: FnExecuteWindow):
    print("on_execute_start()")


def on_execute_result(window: FnExecuteWindow, result) -> bool:
    print(f"on_execute_result(): {result}")
    messagebox.show_info_message(window, message=f"Result: {result}", title="Result")
    return False


def on_execute_error(window: FnExecuteWindow, error) -> bool:
    print(f"on_execute_error(): {error}")
    messagebox.show_exception_messagebox(window, error)
    return False


def on_execute_finish(window: FnExecuteWindow):
    print("on_execute_finish()")


def event_example_3(a: int = 1, b: int = 1):
    return a / b


if __name__ == "__main__":
    event_listener = SimpleFnExecuteWindowEventListener(
        on_execute_start=on_execute_start,
        on_execute_result=on_execute_result,
        on_execute_error=on_execute_error,
        on_execute_finish=on_execute_finish,
    )
    adapter = GUIAdapter()
    adapter.add(event_example_3, window_listener=event_listener)
    adapter.run()

注意到，在本示例中，on_execute_result()和on_execute_error()回调函数均返回了False。

这表示将由开发者自行处理函数返回结果或函数执行异常，而不会执行默认的处理逻辑，具体而言，PyGUIAdapter将不会把函数执行结果或函数异常信息打印到输出浏览器中。

下面是该程序的运行效果：

（1）当函数正常返回时

（2）当函数发生异常时

4、添加菜单和工具栏

开发者可以为FnExecuteWindow添加工具栏和菜单栏，具体方法如下：

from pyguiadapter.action import Action, Separator
from pyguiadapter.adapter import GUIAdapter
from pyguiadapter.menu import Menu
from pyguiadapter.toolbar import ToolBar
from pyguiadapter.windows.fnexec import FnExecuteWindow
from pyguiadapter.utils import messagebox, filedialog


def on_action_about(window: FnExecuteWindow, _: Action):
    messagebox.show_info_message(
        parent=window,
        message="This is an example of toolbar and menu with custom actions.",
        title="About",
    )


def on_action_close(window: FnExecuteWindow, _: Action):
    ret = messagebox.show_question_message(
        window, "Are you sure you want to quit?", buttons=messagebox.Yes | messagebox.No
    )
    if ret == messagebox.Yes:
        window.close()


def on_action_open(window: FnExecuteWindow, _: Action):
    ret = filedialog.get_open_file(
        window,
        title="Open File",
        start_dir="./",
        filters="JSON files(*.json);;Python files(*.py);;All files(*.*)",
    )
    if not ret:
        return
    messagebox.show_info_message(window, f"File will be opened: {ret}")


def on_action_save(window: FnExecuteWindow, _: Action):
    ret = filedialog.get_save_file(
        window,
        title="Save File",
        start_dir="./",
        filters="JSON files(*.json);;All files(*.*)",
    )
    if not ret:
        return
    messagebox.show_info_message(window, f"File will be saved: {ret}")


def on_action_auto_theme(window: FnExecuteWindow, _: Action, checked: bool):
    if checked:
        messagebox.show_info_message(window, "Auto theme is selected.")


def on_action_light_theme(window: FnExecuteWindow, _: Action, checked: bool):
    if checked:
        messagebox.show_info_message(window, "Light theme is selected.")


def on_action_dark_theme(window: FnExecuteWindow, _: Action, checked: bool):
    if checked:
        messagebox.show_info_message(window, "Dark theme is selected.")


action_about = Action(
    text="About",
    icon="fa.info-circle",
    on_triggered=on_action_about,
)

action_open = Action(
    text="Open",
    icon="fa.folder-open",
    shortcut="Ctrl+O",
    on_triggered=on_action_open,
)

action_save = Action(
    text="Save",
    icon="fa.save",
    shortcut="Ctrl+S",
    on_triggered=on_action_save,
)

action_close = Action(
    text="Quit",
    icon="fa.close",
    shortcut="Ctrl+Q",
    on_triggered=on_action_close,
)

action_auto_them = Action(
    text="Auto",
    checkable=True,
    checked=True,
    on_toggled=on_action_auto_theme,
)

action_light_theme = Action(
    text="Light",
    checkable=True,
    on_toggled=on_action_light_theme,
)

action_dark_theme = Action(
    text="Dark",
    checkable=True,
    on_toggled=on_action_dark_theme,
)

submenu_theme = Menu(
    title="Theme",
    actions=[action_auto_them, action_light_theme, action_dark_theme],
    exclusive=True,
)
menu_file = Menu(
    title="File",
    actions=[
        action_open,
        action_save,
        Separator(),
        action_close,
        Separator(),
        submenu_theme,
    ],
)
menu_help = Menu(
    title="Help",
    actions=[action_about],
)


def menu_toolbar_example(arg1: int, arg2: str, arg3: bool):
    """
    This example shows how to add and config toolbar and menus to the window.
    @param arg1:
    @param arg2:
    @param arg3:
    @return:
    """
    pass


if __name__ == "__main__":
    adapter = GUIAdapter()
    adapter.add(
        menu_toolbar_example,
        window_menus=[menu_file, menu_help],
        window_toolbar=ToolBar(
            actions=[action_open, action_save, Separator(), action_close]
        ),
    )
    adapter.run()

效果如下：

5、主要接口

函数执行窗口（FnExecuteWindow）提供了大量接口，开发者可以在动作（Action）回调函数或窗口事件回调函数中调用这些接口。借助这些接口，开发者可以实现相当复杂的功能，比如动态设置/获取参数的当前值，设置是动态增加/删除参数控件。

可以参考以下文档获取这些接口的具体信息：

• pyguiadapter.windows.fnexec.FnExecuteWindow。

下面，通过一些示例来说明这些接口的使用。

（1）示例：加载和保存当前参数

下面结合菜单的使用，实现参数的保存和加载的效果。

import json

from typing import Dict, Any

from pyguiadapter.action import Action
from pyguiadapter.adapter import GUIAdapter
from pyguiadapter.adapter.uoutput import uprint
from pyguiadapter.exceptions import ParameterError
from pyguiadapter.extend_types import color_t
from pyguiadapter.menu import Menu
from pyguiadapter.utils import messagebox, filedialog
from pyguiadapter.windows.fnexec import FnExecuteWindow


def simple_load_save_example(
    arg1: int,
    arg2: float,
    arg3: bool,
    arg4: str,
    arg5: color_t,
):
    """
    This example shows how to save current parameter values to a json file and load a parameter values from a json file.
    @param arg1:
    @param arg2:
    @param arg3:
    @param arg4:
    @param arg5:
    @return:
    """
    uprint("arg1=", arg1)
    uprint("arg2=", arg2)
    uprint("arg3=", arg3)
    uprint("arg4=", arg4)
    uprint("arg5=", arg5)


def on_save_params(window: FnExecuteWindow, _: Action):
    # Step 1: obtain current parameter values from widgets
    #
    # if the current input in the widgets of some parameter is invalid, the get_parameter_values() method may raise a
    # exception. A good practice is to catch the exception and handle it properly:
    #  - for ParameterError, the FnExecuteWindow has a builtin logic to deal with it, so just call the
    #  process_parameter_error() method and let the window do the job.
    #
    #  - for other exceptions, we need handle it by ourselves. Here we choose to show the exception message with a
    #  message box to the user.

    try:
        params: Dict[str, Any] = window.get_parameter_values()
    except ParameterError as e:
        window.process_parameter_error(e)
        return
    except Exception as e:
        messagebox.show_exception_messagebox(
            window, e, message="Unable to get the parameters: "
        )
        return

    # Step2: serialize the parameter values and save them to a json file
    #
    # In this example, because we don't use any complex types, we can use simply json.dump() to do the serialization.
    # However, If your function contains parameters of complex types, such as list, tuple, set, dict, enum, then
    # serialization and deserialization must be considered very carefully.
    #
    save_file = filedialog.get_save_file(
        window, "Save Parameters", filters="JSON files(*.json)"
    )
    if not save_file:
        return
    try:
        with open(save_file, "w") as f:
            json.dump(params, f)
    except Exception as e:
        messagebox.show_exception_messagebox(
            window, e, message="Unable to save the parameters: "
        )
    else:
        messagebox.show_info_message(window, "Parameters have been saved!")


def on_load_params(window: FnExecuteWindow, _: Action):
    # Step 1: load the parameter values from a json file
    file = filedialog.get_open_file(
        window, "Load Parameters", filters="JSON files(*.json)"
    )
    if not file:
        return
    try:
        with open(file, "r") as f:
            params: Dict[str, Any] = json.load(f)
    except Exception as e:
        messagebox.show_exception_messagebox(
            window, e, message="Unable to load the parameters: "
        )
        return
    if not isinstance(params, dict):
        messagebox.show_critical_message(window, message="Invalid parameters format!")
        return

    # Step2: set the parameter values to the widgets
    try:
        window.set_parameter_values(params)
    except ParameterError as e:
        window.process_parameter_error(e)
        return
    except Exception as e:
        messagebox.show_exception_messagebox(
            window, e, message="Unable to set the parameters: "
        )
    else:
        messagebox.show_info_message(window, "Parameters have been loaded!")


if __name__ == "__main__":
    action_save_params = Action(
        text="Save Parameters",
        icon="fa.save",
        shortcut="Ctrl+S",
        on_triggered=on_save_params,
    )

    action_load_params = Action(
        text="Load Parameters",
        icon="fa.folder-open",
        shortcut="Ctrl+L",
        on_triggered=on_load_params,
    )

    menu = Menu(
        title="File",
        actions=[action_save_params, action_load_params],
    )

    adapter = GUIAdapter()
    adapter.add(simple_load_save_example, window_menus=[menu])
    adapter.run()

需要说明的是，上面演示的只是比较简单的情形，函数只包含一些简单类型的参数，因此可以（几乎）可以直接使用json对get_parameter_values()获取到的值进行序列化和反序列化。然而，一旦包含更为复杂的类型，例如dict、list、tuple、set、Enum等，那么就需要认真考虑序列化和反序列化的问题了。当然，方案有很多，如pickle、jsonpickle等，具体的做法一定是和具体的场景结合起来的，这里无法展开，仅仅是做一个提示。

另外，在以上代码中，有很大一部分是在做异常处理，这一方面这是为了说明异常处理的重要性，另一方面也是为了演示如何运用utils包提供的实用函数。

关于ParameterError：出现这类异常主要是因为从控件获取/设置参数值时遇到了非法的输入。因为这种错误比较常见，所以FnExecuteWindow为其内建了一套处理流程，当捕获到此类异常时，如无需进行特别处理，开发者可以直接调用process_parameter_error()。

（2）示例：调整Dock窗口（隐藏/显示/调整位置......）

from pyguiadapter.action import Action, Separator
from pyguiadapter.adapter import GUIAdapter
from pyguiadapter.menu import Menu
from pyguiadapter.windows.fnexec import (
    FnExecuteWindow,
    BottomDockWidgetArea,
)


def dock_operation_example() -> None:
    pass


def on_toggle_document_dock(win: FnExecuteWindow, action: Action):
    win.set_document_dock_property(visible=not win.is_document_dock_visible())


def on_toggle_output_dock(win: FnExecuteWindow, action: Action):
    win.set_output_dock_property(visible=not win.is_output_dock_visible())


def on_tabify_docks(win: FnExecuteWindow, action: Action):
    win.tabify_docks()


def on_move_output_area(win: FnExecuteWindow, action: Action):
    if win.is_output_dock_floating():
        win.set_output_dock_property(floating=False)
    win.set_output_dock_property(area=BottomDockWidgetArea)


def on_float_output_dock(win: FnExecuteWindow, action: Action):
    win.set_output_dock_property(floating=True)


def main():
    action_document_dock = Action(
        text="Toggle Document Dock",
        on_triggered=on_toggle_document_dock,
    )
    action_output_dock = Action(
        text="Toggle Output Dock",
        on_triggered=on_toggle_output_dock,
    )
    action_tabify_docks = Action(
        text="Tabify Docks",
        on_triggered=on_tabify_docks,
    )
    action_move_output_area = Action(
        text="Move Output Area",
        on_triggered=on_move_output_area,
    )
    action_float_output_dock = Action(
        text="Float Output Dock",
        on_triggered=on_float_output_dock,
    )
    menu_views = Menu(
        title="Views",
        actions=[
            action_document_dock,
            action_output_dock,
            Separator(),
            action_tabify_docks,
            action_move_output_area,
            action_float_output_dock,
        ],
    )
    ##########
    adapter = GUIAdapter()
    adapter.add(dock_operation_example, window_menus=[menu_views])
    adapter.run()


if __name__ == "__main__":
    main()
